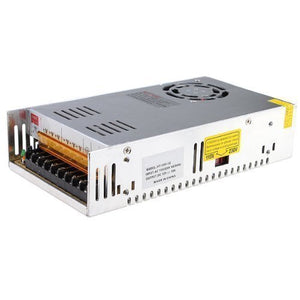

Power Supply - 12v / 30 amps / 360 Watts

Power Supply - 12v / 30 amps / 360 Watts

$29.95
$45.95
$29.95
Sold out
  • General Product Information
    • Used for reducing 120 to 240 Volt AC to ~12 volts DC
    • Output of 30 Amps of power at 12 volts DC
    • Output of ~360 watts
    • Fan forced cooled. Fan adjusts from slow to fast depending on current load.
  • Items included with this item:
    • Switching Power Supply with screw terminals for input and output
  • Required items for operation:
    • Grounded 3 prong power input plug for high voltage side
    • Power output cable (low voltage side)
  • Instructions
    • See product page for wiring and product setup videos.
    • For DMX + Power over CAT5 wiring, see our video or documentation
    • For information on how many LEDs you can run from this power supply, see our Knowledge Base
  • Estimated assembly time:
    • First unit: 5-15 minutes
  • Technical Specifications
    • Color: Silver / Aluminum
    • Weight: 2.05 pounds
    • Dimensions
      • Height: 2"
      • Width: 4.5"
      • Length: 8.5"
    • Temperature Range
      • Operation: 10 to 120 degrees Fahrenheit
      • Storage: -20 to 140 degrees Fahrenheit
    • Material Composition
      • Case: Aluminum
  • County of Origin
    • Materials/parts: China / USA / Japan
    • Assembly: China
    • Design: China
  • Certifications & Approvals
    • Underwriters Laboratories (UL) Certified/Recognized/Approved: No
    • CE: No
    • ROHS (Lead Free): Not Listed
  • Power Input (100-240 volts AC)
    • Neutral (Large blade of plug) Screw Terminal: "N"
    • Hot (Small blade of plug) Screw Terminal: "L"
    • Ground (Round pin) Screw Terminal: "Ground Symbol"
  • Power Output (Adjustable - ~12 volts DC)
    • V+ Screw Terminal (three): Positive 12v
    • V- Screw Terminal (three): Negative 12v
  • Warranty & Support
    • 60 days from date of purchase OR until December 31st of the year in which the product was purchased. For complete information, see our warranty details.
  • Customization: No
